The estimated delivery time for 12v Bilge Pump 750GPH - BP1G75006 will vary depending on the location. If we have the item in stock and your order is placed before 14:00 we will dispatch the item same day using your chosen shipping method. Meaning, if we have it on the shelf, you could get your item next day! The order is processed from Monday to Friday(excluding weekends and holidays). A notification will be sent via email when your order has shipped or is available for in-store pickup. For more details, you can check our Shipping Policy Page.
12v Bilge Pump 750GPH - BP1G75006
£55.18
Availability - 3-4 days
SKU
$000000018111

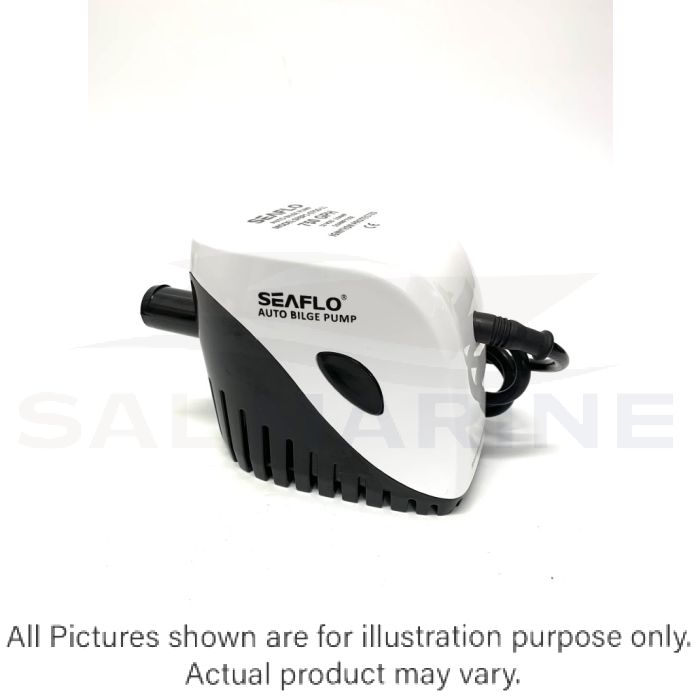

Seaflo 750GPH Automatic Submersible Boat Bilge Water Pump.
All-in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed.Built-in magnetic float switch for longevity! (No separate float switch is needed)
IMPROVED FLOW CHANNEL WITH HIGHER HEAD LIFT
INTEGRATED BOTTOM CASE AND OUTLET PORT ALLOWS EASY CLEANING AND REPLACEMENT
IMPROVED FLOAT SWITCH, NOW 'REED' SWITCH TO CONTROL WITH BETTER SEAL
- 2 Year Warranty
- Snap-off strainer base for easy?cleaning
- All-in-one pump & switch-No float switch required
- With the ability to quick disconnect the power line and the strainer
base in seconds
- 110℉ (43℃) Max
- Our revolutionary,patented design
- Allow for effortless installation and service
- Proper pump care has never been easier
- Will not pump oil-straight motor oil that enters the bilge will not
turn the pump on
- 18AWG,1 m long Leads
Model Flow Rate Voltage Max Draw Fuse Amps Head Wire Lead Outlet Dia N.W. / G.W. SFBP1-G750-11 730 GPH 12V 5.0 A 5.0 A 10.8' (3.3 m) 3' (1 m) 3/4" 0.55/0.6 kg SFBP2-G750-11 722 GPH 24V 3.0 A 3.0 A 10.8' (3.3 m) 3' (1 m) 3/4" 0.55/0.6 kg
PERFORMANCE
750GPH 12V Voltage(V) Current(A) Flow Head(M) GPH LPH
OPEN 2.9 730 2762 0 12 3.11 666 2520 0.5 12 3.4 504 1907 1 12 3.88 355 1343 1.5 12 4.12 243 920 2 12 4.55 106 401 2.5 12 4.83 62 235 3 12 5 0 0 3.3
750GPH 24V Voltage(V) Current(A) Flow Head(M) GPH LPH
OPEN 1.7 722 2732 0 24 1.86 633 2395 0.5 24 2.12 502 1900 1 24 2.21 341 1290 1.5 24 2.52 213 806 2 24 2.64 112 424 2.5 24 2.86 75 284 3 24 3 0 0 3.3
Key Description Composing Material 1 Automatic pump cover
ABS 2 Automatic pump motor cover
ABS 3 Screw
Stainless steel 4 Motor bracket
Galvanized iron 5 Motor
SPCC 6 Oil seal seat
POM 7 Flat washer ABS 8 Double reed single small circuit board
PCB 9 Relay circuit finished board
PCB 10 Automatic pump motor under cover ABS 11 Screw
Stainless steel
Key Description Composing Material 12 Waterproof seal
ABS 13 Five leaf impeller
POM 14 Automatic pump runner connector
ABS 15 Automatic pump under cover filter
ABS 16 Filter small net
ABS 17 Screw
Stainless steel 18 Magnet blue float
ABS+ Magnet 19 Float Blank
ABS 20 Round bar line card
NBR70° 21 Jacket thread 3 * 0.75
PVC+ Coppe
SHIPPING INFORMATION
Unit Pump Weight
1.21 lbs (0.55 kg)
Selling Unit Size (L x W x H)
6.89"x 3.74" x 4.73 "
( 17.5 x 9.5 x 12 cm)
Selling Unit Weight
1.21 lbs (0.55 kg)
Master Carton Size (L x W x H)
19.30"x 14.38" x 11.22"
(49 x 36.5 x 28.5 cm)
Master Carton Qty
20 pcs
Master Carton Weight
26.45 lbs (12 kg)
All-in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed.Built-in magnetic float switch for longevity! (No separate float switch is needed)
IMPROVED FLOW CHANNEL WITH HIGHER HEAD LIFT
INTEGRATED BOTTOM CASE AND OUTLET PORT ALLOWS EASY CLEANING AND REPLACEMENT
IMPROVED FLOAT SWITCH, NOW 'REED' SWITCH TO CONTROL WITH BETTER SEAL
- 2 Year Warranty
- Snap-off strainer base for easy?cleaning
- All-in-one pump & switch-No float switch required
- With the ability to quick disconnect the power line and the strainer
base in seconds
- 110℉ (43℃) Max
- Our revolutionary,patented design
- Allow for effortless installation and service
- Proper pump care has never been easier
- Will not pump oil-straight motor oil that enters the bilge will not
turn the pump on
- 18AWG,1 m long Leads
Model Flow Rate Voltage Max Draw Fuse Amps Head Wire Lead Outlet Dia N.W. / G.W. SFBP1-G750-11 730 GPH 12V 5.0 A 5.0 A 10.8' (3.3 m) 3' (1 m) 3/4" 0.55/0.6 kg SFBP2-G750-11 722 GPH 24V 3.0 A 3.0 A 10.8' (3.3 m) 3' (1 m) 3/4" 0.55/0.6 kg
PERFORMANCE
750GPH 12V Voltage(V) Current(A) Flow Head(M) GPH LPH
OPEN 2.9 730 2762 0 12 3.11 666 2520 0.5 12 3.4 504 1907 1 12 3.88 355 1343 1.5 12 4.12 243 920 2 12 4.55 106 401 2.5 12 4.83 62 235 3 12 5 0 0 3.3
750GPH 24V Voltage(V) Current(A) Flow Head(M) GPH LPH
OPEN 1.7 722 2732 0 24 1.86 633 2395 0.5 24 2.12 502 1900 1 24 2.21 341 1290 1.5 24 2.52 213 806 2 24 2.64 112 424 2.5 24 2.86 75 284 3 24 3 0 0 3.3
Key Description Composing Material 1 Automatic pump cover
ABS 2 Automatic pump motor cover
ABS 3 Screw
Stainless steel 4 Motor bracket
Galvanized iron 5 Motor
SPCC 6 Oil seal seat
POM 7 Flat washer ABS 8 Double reed single small circuit board
PCB 9 Relay circuit finished board
PCB 10 Automatic pump motor under cover ABS 11 Screw
Stainless steel
Key Description Composing Material 12 Waterproof seal
ABS 13 Five leaf impeller
POM 14 Automatic pump runner connector
ABS 15 Automatic pump under cover filter
ABS 16 Filter small net
ABS 17 Screw
Stainless steel 18 Magnet blue float
ABS+ Magnet 19 Float Blank
ABS 20 Round bar line card
NBR70° 21 Jacket thread 3 * 0.75
PVC+ Coppe
SHIPPING INFORMATION
Unit Pump Weight
1.21 lbs (0.55 kg)
Selling Unit Size (L x W x H)
6.89"x 3.74" x 4.73 "
( 17.5 x 9.5 x 12 cm)
Selling Unit Weight
1.21 lbs (0.55 kg)
Master Carton Size (L x W x H)
19.30"x 14.38" x 11.22"
(49 x 36.5 x 28.5 cm)
Master Carton Qty
20 pcs
Master Carton Weight
26.45 lbs (12 kg)
| SKU | $000000018111 |
|---|---|
| Part No | BP1G75006 |
| Supplier Part No | BP1G75006 |
| Supplier Name | Barrus Chandlery |
| supplied with fuel tank | No |
| Express Delivery | Yes |
| Weight | 1.000000 |
Write Your Own Review
We offer a 14-day returns policy for our products, subject to the terms and conditions. The customer should use the "Returns portal" to see if 12v Bilge Pump 750GPH - BP1G75006 is eligible for a return. You can organize a return and handle it in the portal. The original payment method will be used to process the refund. Visit our Return Policy page for more information.
Our complete line of boat engines, boat parts & accessories tends to come with a manufacturer's warranty. 12v Bilge Pump 750GPH - BP1G75006 offers the guarantee provided by the manufacturer.
You will receive an email from us letting you know when 12v Bilge Pump 750GPH - BP1G75006 has shipped, along with a tracking number you can use to check on its progress. Kindly allow the tracking information 48 hours to become available.
