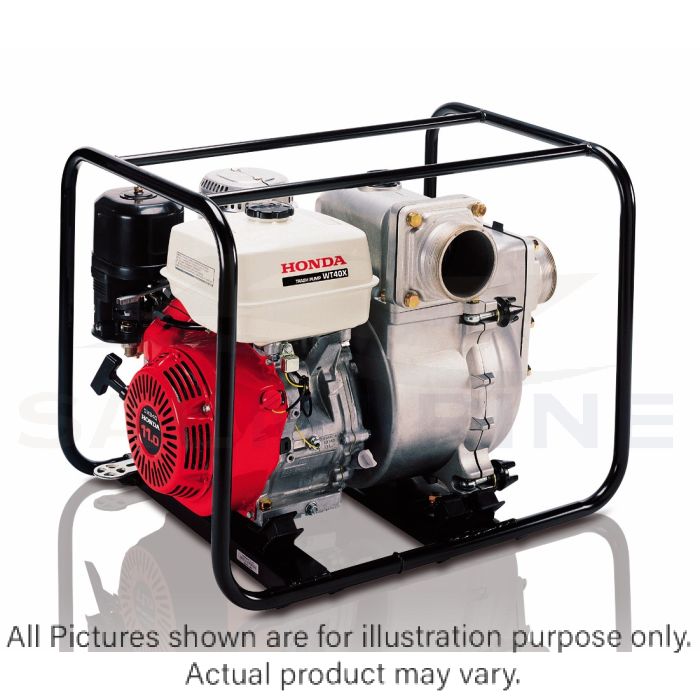

Honda WT40 Water Pump - WT40XK3DE

100mm (4 inch) Trash Water Pump

The Honda WT40 water pump is a robust and reliable solution for various water transfer applications. Engineered with precision and durability in mind, this water pump is powered by a dependable GX series engine, renowned for its efficiency and performance. The WT40 boasts a substantial pumping capacity, making it well-suited for handling large volumes of water in agricultural, construction, and industrial settings. Its heavy-duty construction ensures resilience in challenging conditions, while the advanced pump design maximizes efficiency and minimizes downtime. With a strong focus on user convenience, the Honda WT40 water pump is equipped with features such as Oil Alert®, which safeguards the engine by automatically shutting it down when low oil levels are detected. Overall, the Honda WT40 stands as a testament to Honda's commitment to delivering high-quality and efficient solutions for water pumping needs.

Engine:

• Type: GX Series, 4-stroke, single-cylinder, air-cooled petrol engine.
• Displacement: 242 cc.
• Fuel Tank Capacity: 6.1 litres.
• Oil Alert® System: Yes, automatically shuts down the engine in low oil conditions.

Pump:

• Type: Diaphragm (positive displacement) pump.
• Pump Capacity: Up to 1400 litres per minute.
• Suction Port Diameter: 4 inches (100 mm).
• Discharge Port Diameter: 4 inches (100 mm).
• Total Head Lift: 26 meters.
• Solids Handling: Up to 6.4 mm.

Construction:

• Frame: Heavy-duty tubular steel frame for enhanced durability and stability.
• Impeller: Cast iron impeller for robust performance.
• Mechanical Seal: Carbon-ceramic mechanical seal for long life.

Operational Features:

• Recoil starter for easy engine ignition.
• Low Vibration Design: Minimizes operator fatigue during extended use.
• Easy to Transport: Compact and portable design with sturdy handle for convenience.

Safety and Protection:

• Oil Alert® System: Protects the engine by shutting down in low oil conditions.
• Thermal Relief Valve: Prevents pump damage by relieving excess pressure.

Dimensions and Weight:

• Length: 675 mm.
• Width: 510 mm.
• Height: 510 mm.
• Dry Weight: 54 kg.

Applications:

• Ideal for agricultural, construction, and industrial water transfer.
• Suitable for handling clear water, sludge, and other non-abrasive liquids.

Additional Features:

• EPA and CARB compliant.
• Easy maintenance with readily available replacement parts.

The Honda WT40 water pump combines powerful performance with robust construction, making it a reliable choice for various water transfer tasks.
