RACOR SNAPP FILTER & BRKT - 23299-10
£99.95
AvailabilityIn stock
SKU
$000000011663

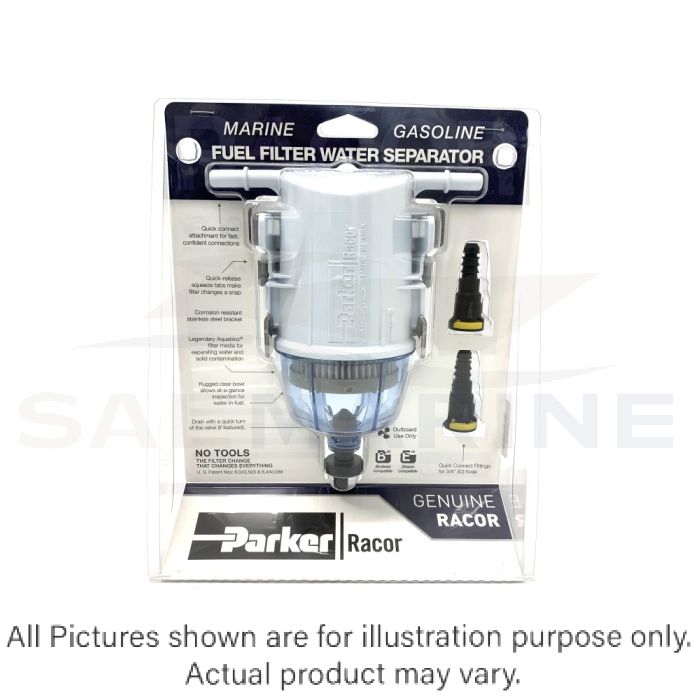

The Racor Fuel Filter Water Separator features a patented bracket system and quick-connect fittings that eliminate the need for seals or threads. This allows change-outs to be performed quickly, easily, and without the use of tools. The filter only requires 2-1/2 inches front clearance for servicing, making it suitable for installation wherever you need it.
The clear collection bowl allows for accurate inspection of fuel quality. A self-vent drain is also available for easy removal of collected water.
The filter can be installed in the fuel line between the tank and the engine. The quick-connect fittings allow for fast connection to fuel lines. Changing the filter can be done by squeezing the quick release fitting tabs, removing and priming the new filter (flow outlet of old to inlet of new), re-attaching fuel lines, and snapping the new filter into the bracket.
Benefits:
• Quick-connect fittings eliminate the need for tools, making filter change-outs quick, easy, and painless.
• Removes water that enters the system through condensation in the fuel tank. Any water present in the fuel stream will support bacterial growth, which can cause clogged filters and result in the formation of corrosive acids. Susceptible components then rust and corrode, leading to erosion and wear of critical fuel system components.
• Removes hard particles present in air that are introduced during fueling, such as sand and silica.
• Saves time and money by eliminating unplanned maintenance and unscheduled downtime from system component failure.
• Suitable for use in both marine and non-marine applications
Technical Specifications
Configuration:White Body and Stainless Steel Bracket
Media:10 Micron Rated (34 gph gasoline/26 gph diesel)
Use Case:First Fit
Bowl Type:With Self Vent Drain
Product Series:Disposable FF/WS, SNAPP?
Brand:Racor
For Fluid Type:Gasoline/Diesel
Configuration:First Fit
Mounting Type:Stainless Steel Bracket
Bowl Type:With Self Vent Drain
Media:10 Micron Rated
Flow Rate:34 (gasoline)/26 (diesel) Gal/hour, 129 (gasoline)/98 (diesel) L/hour
Height:7.82 in/19.86 cm, 7.8 inch, 19.8 cm
Width:3.83 in/9.73 cm, 3.8 inch, 9.7 cm
Depth:4.09 in/10.30 cm, 4.1 inch, 104 cm
Weight:1.0 lb/.45 kg), 1 lb, 0.45 kg
Element Removal Clearance:2.5 in/6.35 cm) inch
Connection Size:3/8" Quick connect
Includes:(2) 3/8? Straight Quick Connect Fittings
Accessories Included:Fittings 2-Pack:
RK23319: 3/8" Quick Connect Elbow Fitting
RK23320: 5/16" Quick Connect Straight Fitting
RK23321: 5/16" Quick Connect Elbow Fitting
Inlet Port Size:3/8" Quick connect
Materials of Construction:Glass filled Nylon body, Nylon bowl, stainless steel bracket
Maximum Operating Temperature:-20 to 150 °F, -29 to 66 °C
Compatible Element:R23298-10
The clear collection bowl allows for accurate inspection of fuel quality. A self-vent drain is also available for easy removal of collected water.
The filter can be installed in the fuel line between the tank and the engine. The quick-connect fittings allow for fast connection to fuel lines. Changing the filter can be done by squeezing the quick release fitting tabs, removing and priming the new filter (flow outlet of old to inlet of new), re-attaching fuel lines, and snapping the new filter into the bracket.
Benefits:
• Quick-connect fittings eliminate the need for tools, making filter change-outs quick, easy, and painless.
• Removes water that enters the system through condensation in the fuel tank. Any water present in the fuel stream will support bacterial growth, which can cause clogged filters and result in the formation of corrosive acids. Susceptible components then rust and corrode, leading to erosion and wear of critical fuel system components.
• Removes hard particles present in air that are introduced during fueling, such as sand and silica.
• Saves time and money by eliminating unplanned maintenance and unscheduled downtime from system component failure.
• Suitable for use in both marine and non-marine applications
Technical Specifications
Configuration:White Body and Stainless Steel Bracket
Media:10 Micron Rated (34 gph gasoline/26 gph diesel)
Use Case:First Fit
Bowl Type:With Self Vent Drain
Product Series:Disposable FF/WS, SNAPP?
Brand:Racor
For Fluid Type:Gasoline/Diesel
Configuration:First Fit
Mounting Type:Stainless Steel Bracket
Bowl Type:With Self Vent Drain
Media:10 Micron Rated
Flow Rate:34 (gasoline)/26 (diesel) Gal/hour, 129 (gasoline)/98 (diesel) L/hour
Height:7.82 in/19.86 cm, 7.8 inch, 19.8 cm
Width:3.83 in/9.73 cm, 3.8 inch, 9.7 cm
Depth:4.09 in/10.30 cm, 4.1 inch, 104 cm
Weight:1.0 lb/.45 kg), 1 lb, 0.45 kg
Element Removal Clearance:2.5 in/6.35 cm) inch
Connection Size:3/8" Quick connect
Includes:(2) 3/8? Straight Quick Connect Fittings
Accessories Included:Fittings 2-Pack:
RK23319: 3/8" Quick Connect Elbow Fitting
RK23320: 5/16" Quick Connect Straight Fitting
RK23321: 5/16" Quick Connect Elbow Fitting
Inlet Port Size:3/8" Quick connect
Materials of Construction:Glass filled Nylon body, Nylon bowl, stainless steel bracket
Maximum Operating Temperature:-20 to 150 °F, -29 to 66 °C
Compatible Element:R23298-10
| Part No | 23299-10 |
|---|---|
| Supplier Part No | 23299-10 |
| Express Delivery | Yes |
| SKU | $000000011663 |
| Weight | 1.000000 |
| Supplier Name | ROTEC |
| supplied with fuel tank | No |
